UIIframeElement


Represents an iframe element in a panel.

The height of the iframe can be set by using the height property either as a number (measured in pixels) or a string (e.g. “100px” or “50%“).

By default, the height is calculated following a 16:9 ratio.

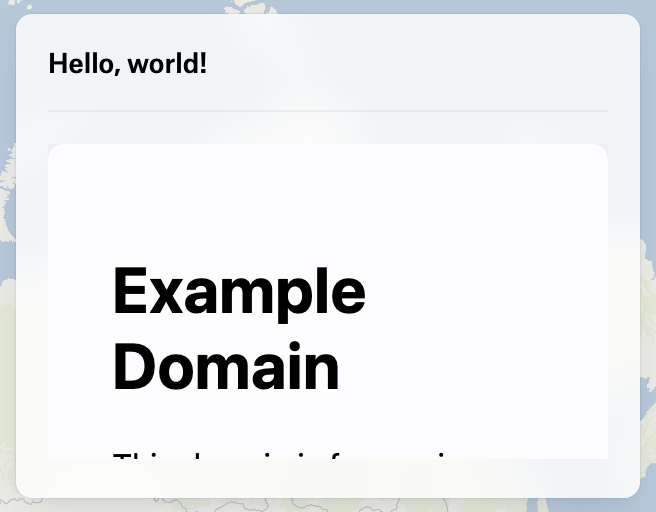

Iframe showing an example website
Iframe with default height (16:9)
{ type: "Iframe", url: "https://www.example.com" }

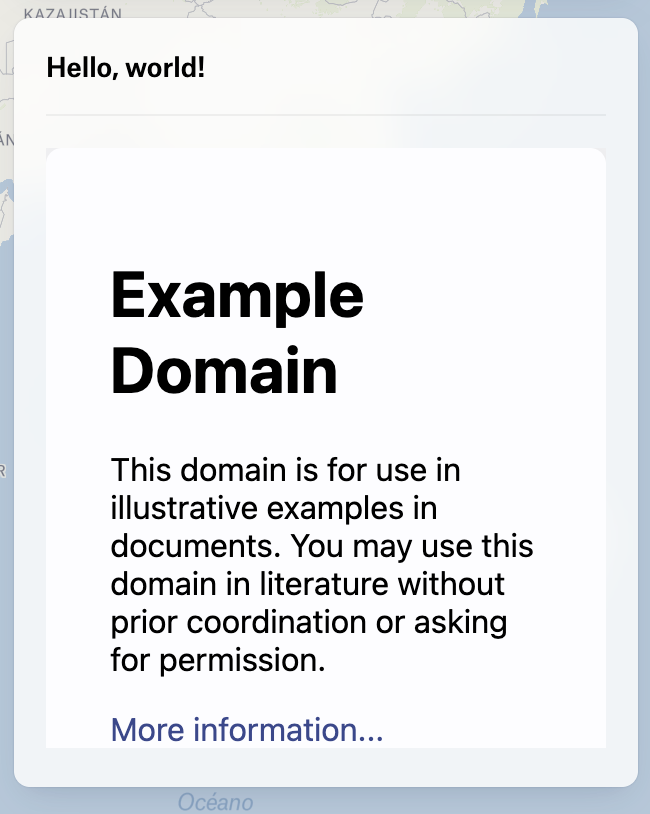

Iframe showing an example website with a custom height
Iframe with custom height
{ type: "Iframe", url: "https://www.example.com", height: 300 }

Properties

type

type: "Iframe"


url

url: string

The URL of the iframe.


id

id: string

The ID of the element.


height?

optional height: string | number

The height of the iframe.

If not provided, the height will be automatically calculated following a 16:9 ratio.


onCreate()?

optional onCreate: (args: { id: string; }) => void

A function to call when the element is created.

Parameters

Parameter
Type
Description

args

{ id: string; }

The arguments passed to the function.

args.id

string

The id of the element.

Returns

void


onDestroy()?

optional onDestroy: (args: { id: string; }) => void

A function to call when the element is destroyed.

Parameters

Parameter
Type
Description

args

{ id: string; }

The arguments passed to the function.

args.id

string

The id of the element.

Returns

void
